Induction Furnace Yoke
| Description:- |
|---|
The profiling yoke is constructed in the induction melting furnace physique. The yoke shielding can cut back the magnetic flux leakage, forestall the furnace physique from heating and enhance the effectivity. At the identical time, the magnetic yoke can assist and repair the induction coil, in order that the furnace physique can obtain excessive energy and low noise. Read Electrotherm Induction Furnace

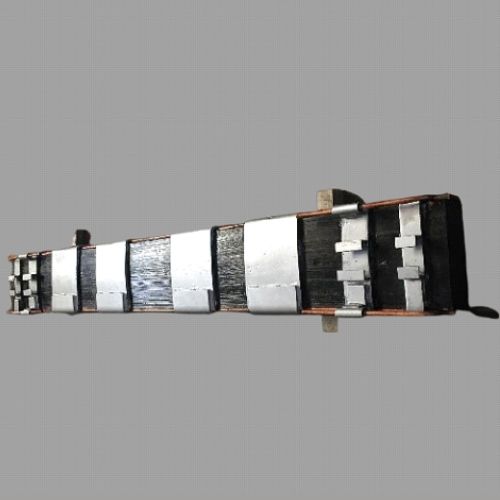

The yoke is a crescent formed yoke made from cold-rolled silicon metal sheet and stainless-steel splint. The joint floor of the iron core and the coil is a round arc floor, and the urgent place is a floor reasonably than a line prior to now. This construction has good urgent impact and less magnetic leakage. After the silicon metal sheet is stacked, it's tightened with particular splint as a substitute of particular by way of screw. This construction could make full use of the magnetic conductive space of silicon metal sheet and cut back the potential of native heating of induction furnace physique.
We provide premium high quality Water Cooled and Air Cooled Laminated Yoke to our esteemed shoppers.
Yokes are made out of laminated CRGO sheets minimize from prime supplies as per its design and annealed for correct Grain orientation as much as its required temperature.
These laminated sheets are pressed with a hydraulic press machine o0r by hand pushed stress machine to keep up its tightness so that a very minimal air hole between laminations exists for higher end result. Yokes are made bolted or welded kind with Copper plates for cooling goal.
Copper plates are positioned between laminations or on the acute sides as required to take away additional warmth eliminated by way of water passes on brazed copper tubes on the plates. Read Megatherm Induction Furnace
Yokes are primarily used to move the massive electrical Coil fluxes, finds it a low resistance path for electrical fluxes.
